Garmin LiveScope Plus

Real-time sonar on the Garmin LiveScope Plus System LVS34 Transducer ensures that your live images are as accurate as possible. Clear vision to see exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure. A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions. Choose from seven vivid color options including Aqua, Caribbean, Lava and more to see fish and structure in maximum contrast and clarity. Scout ahead of your boat to see what’s happening in real time. Explore live views of the activity directly beneath your boat and see under the water with a view from your perspective above the water.

Features

• Dimensions 6.4” x 3.1” x 1.9” (16.2 x 3.1 x 4.8 cm)
• Waterproof IPX7
• Weight 2.25 lbs (1.02 kg)
• Transmit power 500 W
• Power usage 21 W typical, 58 W max
• Temperature range Operating: 0°C to 40°C
• Fuse 7.5 A
• Minimum depth: 3' (0.91 m)
• Sonar type: Live
• Beamwidth: 20° x 135°
• Transducer cable length: 20 ft
• Transducer number of pins: 21
• Connections Garmin marine network ports: 1 (small connector)
• Power input 10-32 V
• Max Depth down and forward: 200’ (61.0 m)
• Frequency 530 - 1,100 kHz
• Compass-safe distance 4 feet (0.1 m)

In the box

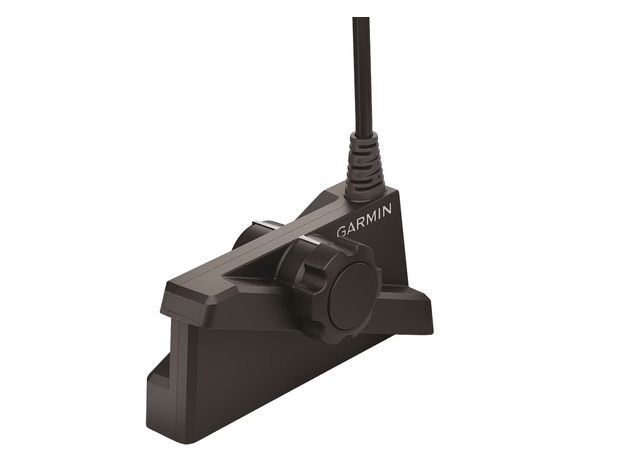

• Panoptix LVS34 transducer
