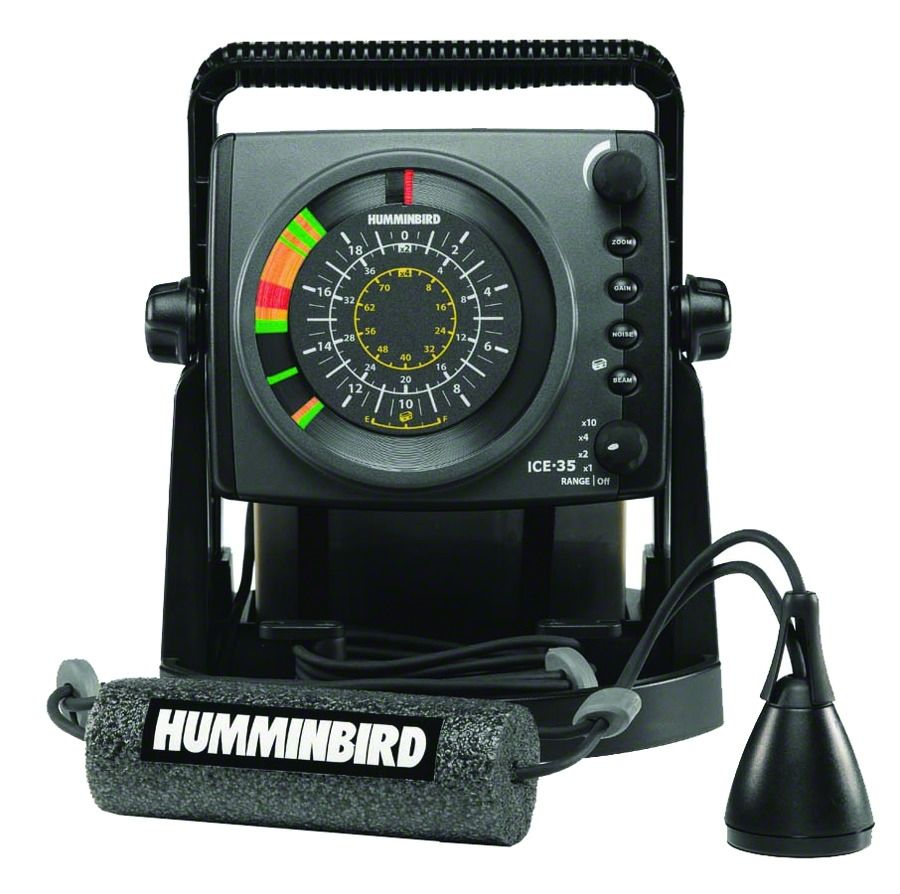

Ice-35 Dual Beam Ice System
**Mouse over image above to zoom any area, or click on image to zoom the entire image.
3-color fiber optic flasher display with depth scale overlay delivers excellent sunlight readability. Selectable dual frequency sonar:240kHz/19" @-3db and 455kHz/9 @-3db. 800 Watts peak-to-peak power. 200' depth capability. 7 amp hour battery with charger. Battery status indicator. 10 step interference rejection. 4 Depth scales in manual mode (20',40',80',200'). 4 Keypad buttons to control Zoom, Gain, Noise, and Sonar beam. "Shuttle" mount with built-in gimbal bracket.
SPECS: 407020-1 DUAL BEAM ICE SYSTEM
SPECS: 407020-1 DUAL BEAM ICE SYSTEM
